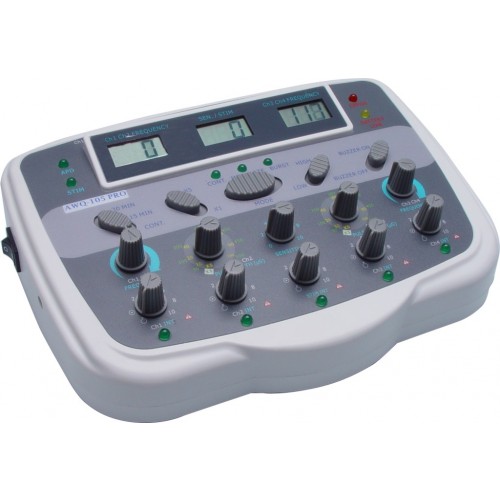

AWQ-105 PRO
Multifunctional Electric Stimulator
A highly useful stimulation device for daily acupuncture practice. It features essential functions and allows for adjusting frequencies and pulses in various ways according to 2 types of outputs.
This device comes with 4 Ø45mm round adhesive electrodes, which are included free of charge.

Usage:
With its probe, the AWQ-105 PRO allows for the localization and stimulation of acupuncture point(s).
Two interchangeable tips of different sizes are provided with the device. These enable usage on different points of the body as well as on ear points (Auriculotherapy).
It is possible to pair the device with adhesive electrodes to use it as a stimulation device (see electrodes below).

Features of the AWQ-105 PRO device:
5 outputs (including an exclusive output for point search and detection and immediate stimulation).
Frequency and pulse width are adjustable and are divided into two groups. Group I (channels 1 and 2), Group II (channels 3 and 4)
3 screens (15x30mm), two of which help you accurately see the frequency, and another to show sensitivity during acupuncture point detection. This screen will also show the frequency (set at 10Hz) during direct stimulation.
Wave types: continuous, intermittent, and fixed intermittent.
Pen for searching and stimulating points.
Adjustable pulse output and width selection. X1 and X5 (multiplier).
Continuous timer: 15 min, 30 min.
Acoustic signal to assist in locating the point.
Constant intensity at each output.
Acoustic error device.

Accessories provided in the package:
AWQ-105 PRO
Search and stimulation probe (pen-shaped)
4 connection cables (4 colors)
4 crocodile clips with dual output (8 crocodile clips)
Batteries not included. 6 x 1.5V type C batteries.
Instruction Manual

Compatible with the following items:
J860B - Round Adhesive Electrodes
J860 - Rectangular Adhesive Electrodes
- Power adapter available upon request, availability to be confirmed (Reference J868AC).

Technical Specifications:
Normal output of APD channels / stimulation output channel.
Low 0 to 10 volts, 0 to 20 mA
High 0 to 22.5 volts, 0 to 45 mA
APD / Stim 0 to 40 volts, 0 to 80 mA
Pulse width X1: 50-500µS adjustable. 260µS (fixed) X5: 10-100µS adjustable
Pulse rate X1: 1-100Hz. 10Hz (fixed) X5: 5-500Hz. adjustable
1-year warranty.
