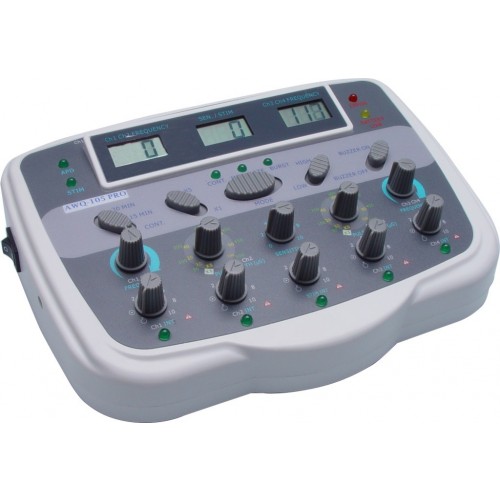

AWQ-105 PRO - Multifunction electrical stimulator.
ADHESIVE ELECTRODES FREE.
Offer while stocks last

Very useful stimulation device in the daily practice of acupuncture. It has the main essential functions and allows the frequencies and pulses to be adjusted in distinct forms according to 2 types of outputs.
.This device is available with 4 round adhesive electrodes Ø45mm, which are offered

Usage: Thanks to its probe, the AWQ-105 PRO allows you to locate and stimulate the Acupuncture point(s).
Two interchangeable tips of different sizes are supplied with the device. They allow use on different points of the body, but also the points of the ear (Auriculotherapy).
It is possible to couple the device with adhesive electrodes to use it as a stimulation device (see electrodes below).
The set can be powered by 6 batteries or from the mains.

Features of the AWQ-105 PRO device:
- 5 outputs (including exclusive output for point search and detection and immediate stimulation).
- The frequency and pulse width can be adjusted and it is separated into two groups. Group I (channels 1 and 2), group II (channels 3 and 4)
- 3 screens (measures 15x30mm), two that will help you see the frequency accurately and another to show the sensitivity when detecting the acupuncture point. This screen will also tell you the frequency (set to 10Hz) during direct stimulation.
- Wave types: continuous, discontinuous and fixed discontinuous.
- Pen to search and stimulate points.
- Selection of pulse output and adjustable width. X1 and X5 (multiplier).
- Continuous timer: 15 min, 30 min.
- Acoustic signal that will help you locate the point.
- Constant intensity at each output.
- Acoustic error device.

Accessories supplied in the packaging:
- AWQ-105 PRO
- Search and stimulation probe (pen shape)
- 4 connection cables (4 colors)
- 4 crocodile clips with double output (8 crocodile clips)
- Instruction Manual
< /p>Compatible with items:
- J860B - Round adhesive electrodes
- J860 - Adhesive electrodes, rectangular

Technical specifications:
- Normal APD channel output/output channel pacing.
- Volts and current
- Low 0 to 10 volts, 0 to 20 mA
- High 0 to 22.5 volts, 0 to 45 mA
- APD / Stim 0 to 40 volts, 0 to 80 mA
- Pulse width X1: 50-500µS adjustable. 260µS (fixed) X5: 10-100µS adjustable
- Pulse rate X1: 1-100Hz. 10Hz (fixed) X5: 5-500Hz. adjustable
- 1 year warranty.
